In 1984, TARUS unveiled the 5-axis portable Claymill, the world’s first Claymill. The new TARUS Claymill X represents decades of innovation built on the roots of the original.
Ideal for a true multi-purpose role for milling car models, Claymill X delivers an unparalleled combination of 5-axis milling of clay, foam, and urethane.
Claymill X easily installs where bulkier gantry mills will not, while offering superior performance.
With a highly robust column and arm, Claymill X handles more power and stronger components that rapidly create Class-A surface finishes. You’ll have higher productivity and complete more car models in the same time.
Our unique monocoque design with advanced aluminum alloy reduces weight while maximizing stability, rigidity and acceleration for the best surface finish.
Better engineering design translates into durability and lower cost of ownership that TARUS Claymills are legendary for.
Claymill X comes equipped with the industry standard Siemens SINUMERIK ONE-based TARUS Design Studio Interface and TPI CAM.
Our proprietary TARUS Design Studio Interface and TPI CAM interface is continually developed in partnership with design studios and renowned by car modellers worldwide.
Increased acceleration rates and elimination of backlash via rack and pinion drive on X,Y and Z axes with dual servo motors.
Extremely quiet operation compared to ball screw driven machines via rack and pinion drive.
Nearly silent spindle, liquid cooled.
Advanced monocoque aluminum alloy construction of machine column and milling arm increases performance, stability, and rigidity while reducing weight.
TARUS fork style milling head with direct-absolute angular position delivers perfectly blended adjacent surface patches.
Claymill X features
The fixed rail version of the Claymill X.
Perfect choice for in-studio or milling room multi-purpose duty. Superior access to vehicle model details below the beltline from horizontal arm configuration.
Full featured, no compromises, highest performance.
More powerful milling head & spindle. +50% larger than our standard Claymill.
3 and 5-axis CNC milling and measuring of design models.
Modular rails, standard section length of 118″ / 3,000 mm. Custom length and rails available.
Multiple columns can be added to rail installation as needed.
Clay, Foam, Urethane / UREOL.

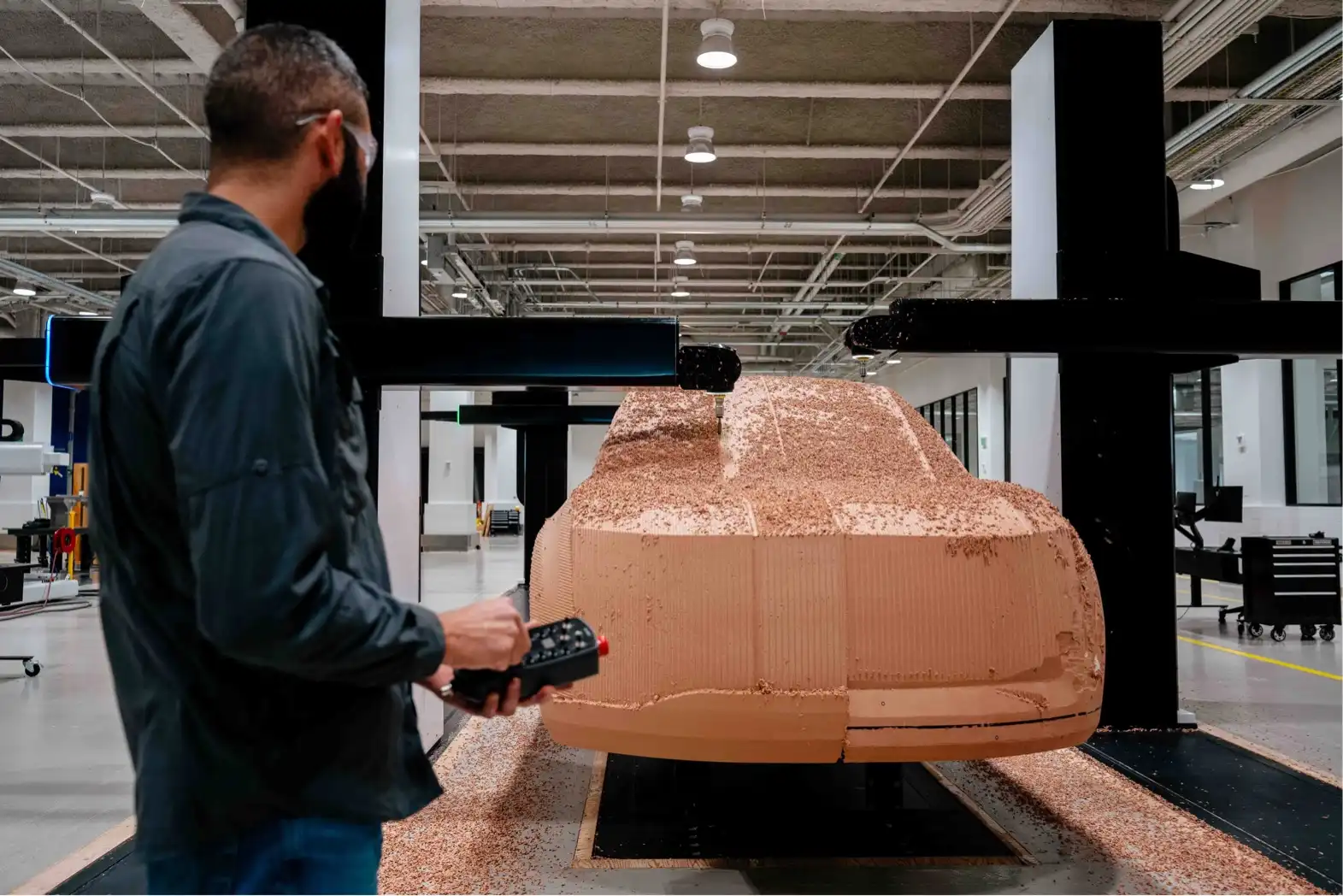

Available with optional TARUS Claymill Wireless Controller.
Claymill XM features
The mobile version of the Claymill X.
Perfect choice for in-studio multi-purpose duty. Superior access to model details below the beltline from horizontal arm configuration.
Full featured, no compromises, highest performance.
Unlimited directional movement allows precise location on edge of floor plate via air cushions.
Ease of movement: Equipped with retractable wheels and a hitch point, can be towed with a motorized pallet jack.
Precise machine placement on uneven floor surface from electronically controlled TARUS proprietary automated leveling system.
Claymill XM works best with integrated TARUS floor plates. Existing floor plates can be used with minor modifications.
Clay, Foam, Urethane / UREOL
Available with optional TARUS Claymill Wireless Controller.
Installation Features
Optimal choice where low ceiling prevents use of gantries.
Many versatile options, on-rail or mobile.
With or without surface plates.
Machine rails mount on top of floor or in shallow trenches. Very low profile rails contain all running hardware plus AC power.
Modular rails, standard section length of 118″ / 3,000 mm. Custom length and rails available.
Multiple columns can be added to rail installation as needed.
CNC Features
Claymill X and Claymill XM comes equipped with the industry standard Siemens SINUMERIK ONE-based TARUS Design Studio Interface and TPI CAM.
Our proprietary TARUS Design Studio Interface and TPI CAM interface is continually developed in partnership with design studios and renowned by car modellers worldwide.
Wireless probing for model alignment and measurement.
